Analysis of CMYK Full Color Patch Function and Applications in Color Printing Tests

I. Core Testing Logic: The Design Essence and Coverage Dimensions of CMYK Full Color Patch

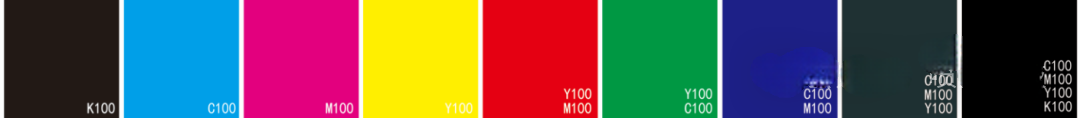

(A) Structural Design Specifications of Full Color Patch

1. Patch Composition
The test chart contains two core types of patches, each single patch ≥50mm × 50mm, with spacing ≥10mm to avoid ink bleed interference:

• Single-color full patches: Independent full patches of C (Cyan), M (Magenta), Y (Yellow), K (Black), without any pattern interference, focusing on density and uniformity of a single color.
• Overlaid color full patches: Five groups of multi-color overlaid full patches—CM (Blue), MY (Red), CY (Green), CMY (Light Black), CMYK (Pure Black)—used to verify color mixing accuracy and registration precision.

Some high-end test charts include gradient overlay patches (e.g., gradient from C to CM full patch) to assess the smoothness of color transitions.

2. Core Difference from Single-color Patch Tests

Key Conclusion: The main value of CMYK full color patches lies in “point-to-area performance verification” — single-color patches validate local color accuracy, while full color patches assess large-area printing stability and multi-color collaboration accuracy, serving as an essential pre-production module in industrial printing.

(B) Core Coverage Dimensions of the Test

1. Single-color Performance: Density compliance of four full-color patches, spatial uniformity (no stripes or blotches)
2. Mixing Performance: Accuracy of multi-color overlays (e.g., CM overlay matches standard blue) without color contamination
3. Registration Performance: Edge alignment accuracy in multi-color overlay regions; no ghosting or misalignment
4. Ink Performance: Drying speed for large-area printing, no bleed, no buildup, and compatibility between different inks

II. Core Test Functions: From Single-color Uniformity to Multi-color Coordination Verification

(A) Function 1: Density and Uniformity Test for Single-color Full Patch (Fundamental Core)

1. Testing Methods and Criteria

• Density measurement: Using a reflection densitometer, select 9 test points (3×3 grid including center, four corners, and edges) for each single-color full patch and take the average.
• Density standards: C ≥ 1.2D, M ≥ 1.1D, Y ≥ 0.9D, K ≥ 1.4D (industrial-grade devices require K ≥ 1.5D)
• Uniformity standards: Standard deviation ≤0.03D (excellent), ≤0.05D (acceptable), with no visible light-dark stripes or blotchy defects.


2. Common Defects and Technical Causes

(B) Function 2: Color Accuracy and Registration Precision Test for Multi-color Overlays (Core Coordination Function)

1. Color Accuracy Determination

• Reference standard: Overlay colors must meet ISO 12647-2 color standards (e.g., CM overlay CIE Lab value within ±2△E of standard blue)
• Common defects: CM overlay appears purple (excess M), MY overlay appears red (insufficient Y), CMY overlay appears gray (excess K) — all considered color mixing failures
  2. Registration Precision Determination

• Visual observation: Overlay areas have no ghosting (e.g., CM overlay blue edges free from C/M outlines) and no misalignment
• Instrument measurement: Registration error ≤ ±0.1mm (industrial-grade ≤ ±0.05mm) using a registration gauge to measure multi-color edge alignment
• Typical defect: Double shadows in multi-color overlay areas (e.g., red text on red background shows M/Y ghosting), caused by print timing deviations or printhead misalignment

(C) Function 3: Ink Compatibility and Large-area Print Stability Test (Industrial Requirement)

1. Drying Speed Test: After large-area printing, record the time for ink to fully dry (no smudging) under standard conditions (23±2℃, 50±5% RH); industrial-grade requirements: ≤30s for paper, ≤60s for fabric.
2. No Bleed Test: Multi-color overlay edges show no color bleed (e.g., CM overlay blue edges without cyan or magenta spreading into white).
3. No Buildup Test: Full patch areas have no ink droplet accumulation forming bumps or drips; especially for K full patches, avoid sticky surfaces.

III. Key Impacts of Test Results on Printing Quality

(A) Directly Determines Large-area Printing Quality

1. Advertising/Architectural Wall Printing: Single-color full patches are common design elements (e.g., blue background panels, black slogan areas). Poor density uniformity causes “yin-yang face” effects or stripes, directly affecting visual quality.
2. Packaging Printing: Brand packaging base colors (e.g., red gift boxes, blue cartons) must have uniform density; otherwise, color differences in the same batch damage brand image.
3. Textile Printing: Large monochrome areas (e.g., pure cyan, pure yellow fabric) with uneven density produce patchy color, increasing customer return rates.

(B) Affects Multi-color Pattern Color Accuracy and Precision

1. Color Mixing Accuracy: Overlay color precision in CMYK full patches directly maps to complex pattern color reproduction — e.g., blue sky (CM overlay), flowers (MY overlay). Color deviation in overlays distorts overall image colors.
2. Registration Accuracy Affects Edge Sharpness: Multi-color edge misalignment >0.1mm blurs text/logo edges (e.g., red logo with M/Y misalignment), reducing image finesse.

(C) Reflects Long-term System Stability

• CMYK full color patch results are the “litmus test” of printer performance:
  • Large fluctuations in single-color full patch density indicate unstable nozzles or ink feed systems, risking color drift in batch printing.
  • Frequent bleeding in multi-color overlays indicates poor ink formulation or media compatibility, insufficient for high-load production.

IV. Industry Applications and Practical Optimization Paths

(A) Core Application Scenarios

1. Equipment Factory Acceptance: CMYK full color patch test is a core acceptance item for industrial inkjet devices — must meet density, uniformity, and registration standards, otherwise equipment is deemed unqualified.
2. Pre-batch Production Calibration: In packaging, advertising, textiles, print full color patches before daily production to calibrate density and registration, avoiding batch defects.
3. Consumable Replacement Verification: When changing ink brand, batch, or media, verify compatibility via full color patch tests (e.g., new ink drying speed, density stability).

(B) Parameter Optimization and Issue Resolution Cases

1. Density Uniformity Optimization:
   • A packaging company: K full patch shows vertical stripes, standard deviation 0.08D (fail). Inspection finds 3 nozzle columns under-dispense; cleaning and voltage adjustment reduces SD to 0.03D, stripes eliminated.
2. Overlay Color Calibration:
   • An advertising company: CM overlay appears purple (△E=3.2); by reducing M droplet from 18pl→16pl, increasing C from 15pl→16pl, overlay △E reduces to 1.1, meeting standard blue requirement.
3. Registration Precision Adjustment:
   • A textile printing company: MY overlay shows ghosting (0.15mm misalignment); recalibrating nozzle positioning (lateral offset 0.08mm) and optimizing ink timing reduces misalignment to 0.04mm, eliminating ghosting.

V. Key Considerations for Test Implementation

        1. Test Environment Control

• Perform tests under standard temperature and humidity (23±2℃, 50±5% RH) to avoid ink spread due to high temperatures or static effects at low humidity. Preheat the printer for 30 minutes to stabilize ink feed pressure and printhead temperature.
• 2. Detection Tools and Methods

• Densitometer: Calibrate weekly; measurement error ≤0.01D.
• Registration Accuracy: Use cross-targets (CMYK cross lines at full patch edges) to check alignment.
• Drying Speed: Use smudge test paper; lightly press full patch area, no ink transfer indicates proper drying.3. Synergy with Other Test Modules

• If single-color full patch uniformity is poor but 16-level grayscale test passes, the printer’s large-ink output stability needs optimization.
• If overlay colors are off but single-color patches pass, registration algorithms or color mixing parameters need adjustment rather than ink formulation.
