Print directly on ceramic tiles with high adhesion, full color, and flexible production — without expensive plate making or complex processes.
👉 Stop losing custom orders due to traditional printing limitations.
👉 We understand your concerns about quality, reliability, and long-term support — and we deliver proven solutions.

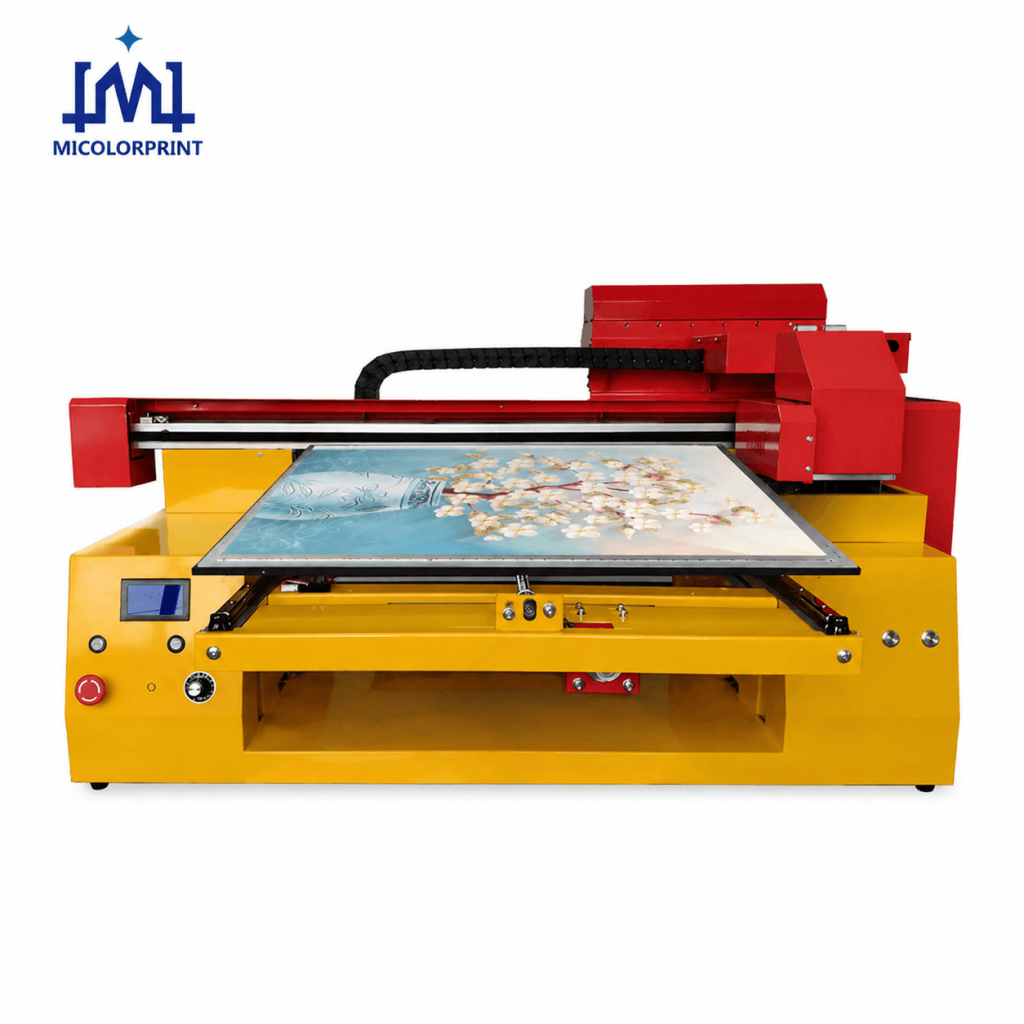

A ceramic tile printer machine is a digital printing solution(also call UV Printer) that allows you to print images, patterns, and textures directly onto tiles using UV technology.
Unlike traditional ceramic printing, it does not require kilns or plate making, making it ideal for custom production and flexible manufacturing.
👉 This means you can respond faster to market demand without high setup costs.
Expand your business into high-value markets:
👉 Turn every tile into a profitable product.
👉 Deliver premium results your customers are willing to pay for.
👉 These limitations prevent you from capturing profitable custom orders.
👉 Start accepting custom orders without changing your entire production line.
👉 Designed to help you produce high-quality results with minimal effort.
| Item | UV Printing | Traditional |
|---|---|---|
| Cost | Low | High |
| Customization | Yes | No |
| Small Batch | Yes | No |

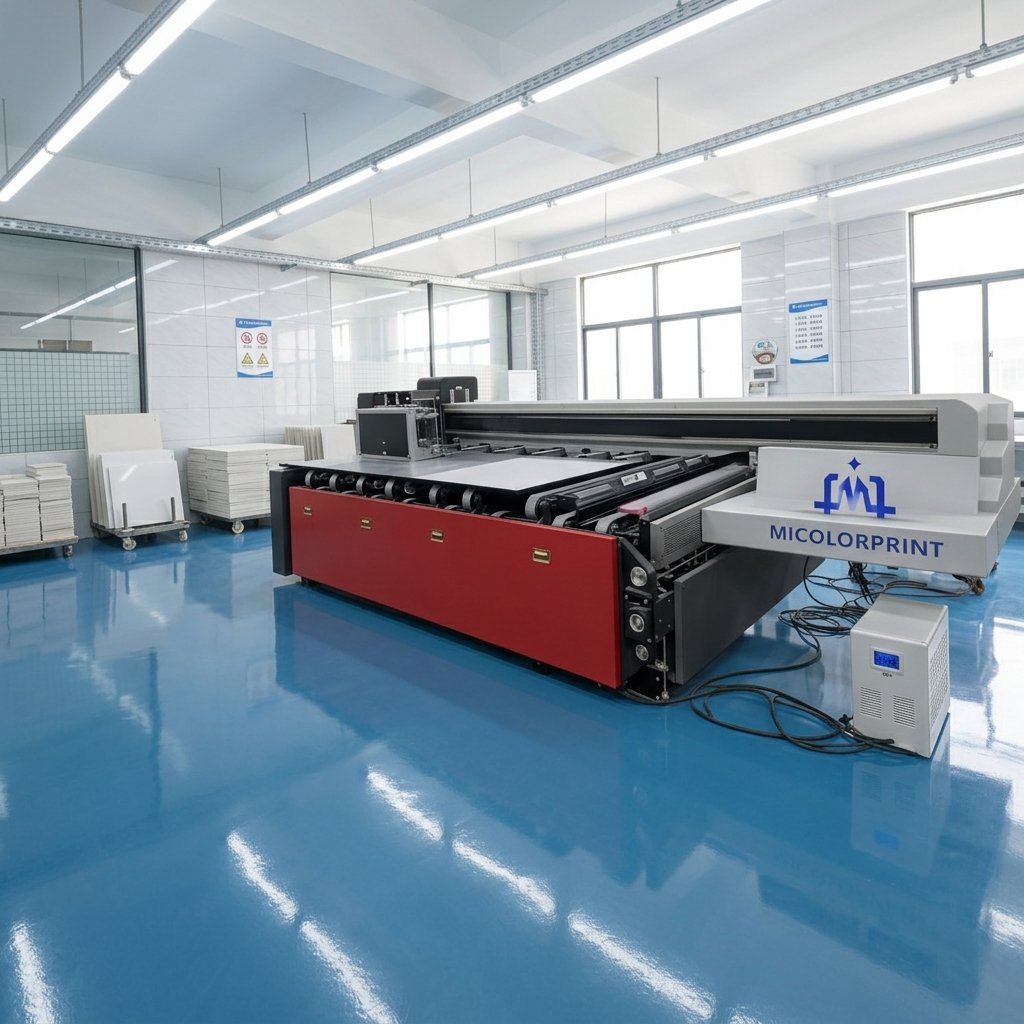

| High-Temperature Glazed Ceramic Printer Item | High-Temperature Glazed Ceramic Printer Specification |
|---|---|
| Model | MC-High Temperature Printer |
| Machine Size | Height 1540 mm × Length 5520 mm × Width 2850 mm |
| Print Size | 3000 mm × 2000 mm |
| Max Load Weight | 500 kg (no-loss precision load) |
| Ink Supply System | 5 colors + 1 white, continuous intelligent ink circulation system |
| Operating System | Windows 7/10/11 |
| Optional Printheads | Configurable with 3 or 6 heads |
| Interface | Gigabit Ethernet |
| Transmission System | Ultra-wide synchronous belt / precision arc rack & pinion / high-speed feed bearings |
| Media Thickness | 100 mm (customizable) |
| Lifting System | Platform lifting |
| Supported File Formats | TIFF (RGB & CMYK), BMP, PDF, EPS, JPEG, etc. |
| Printhead Option | Optional high-precision Ricoh G5 printhead (for high-viscosity inks) |
| Printing Platform | High-precision universal ball distribution platform |
| Working Environment | Temperature: 15°C–35°C; Humidity: 20%–80% |
| Ink Supply Structure | Independent single-color modular ink system |
| Power Supply | AC 220–240V, 50Hz, Rated power 3000W |
| Mode | Speed |
|---|---|
| High-speed Mode | 30 m²/hour |
| Standard Mode | 15 m²/hour |
| High-precision Mode | 10 m²/hour |
| Item | Description |
|---|---|
| Drive System | Y-axis dual magnetic levitation drive for higher stability and precision |
| Print Resolution | 2880 dpi / 1440 dpi / 720 dpi / 360 dpi |
👉 Start small or scale up — based on your market strategy.
Apply coating on tile surface
Place tile on printer
Upload design and print
UV curing – ready to use
👉 Real results from real customers.
👉 Higher profit margins compared to traditional production.
A ceramic tile printer machine is a digital printing machine( also call ceramic inkjet printer) that prints images directly onto ceramic tiles using UV ink or ceramic ink technology. It is widely used for custom decoration and small batch production.
Yes, UV printers can print directly on ceramic tiles. However, for best adhesion, a coating (primer) is usually required before printing.
Most tiles can be printed, including:
UV printing is flexible, low-cost for small batches, and does not require high-temperature firing. Traditional ceramic printing requires kilns and is suitable for mass production.
UV printing is ideal for customization and short runs. For large-scale industrial production, traditional ceramic ink printing is more common.
Yes, ceramic tile printers can achieve high-resolution, photo-quality printing with rich colors and fine details.
Yes, UV printers support white ink, which is essential for printing on dark or colored tiles.
Yes, by using varnish (clear ink), the printer can create glossy or textured (embossed) effects.
If properly coated and processed, the print will have strong adhesion and will not easily peel off.
Yes, UV printed tiles are water-resistant and suitable for indoor applications such as bathrooms and kitchens.
Yes, in most cases, a coating (primer) is required to ensure strong adhesion between the ink and the tile surface.
Coating improves ink adhesion and durability, especially on smooth or polished tile surfaces.
Yes, glossy tiles can be printed, but coating is usually required for better results.
Yes, matte tiles are generally easier to print on and may require less coating.
It depends on the surface. Rough tiles may require special treatment or may not be suitable for high-quality printing.
The cost mainly includes ink, coating, and electricity. It is generally low, especially for small batch production.
Yes, custom tile printing can offer high profit margins, especially in decoration, art, and personalized markets.
ROI depends on your business model, but many users recover their investment quickly through custom orders.
For small quantities and custom designs, UV printing is much more cost-effective than traditional methods.
Yes, many users start custom tile printing businesses with small or medium-sized machines.
Yes, most ceramic tile printers are user-friendly and require minimal training.
The basic process includes:
No, basic computer skills are enough to operate the machine.
Our machines use better print software and RIP software to manage colors and printing settings.
Printing time depends on size,head quantity, head type and resolution, but typically ranges from a few minutes per tile.
UV ink printed tiles are mainly recommended for indoor use unless additional protection is applied, if used Ceramic Raw Material Ink， it can used outdoor.
Yes, it supports full customization, including photos, logos, and patterns.
Typical users include:
It depends on the machine size. Common options include A3, A2, 6090, and large-format printers(2513/1613), other special size ceramic tile can customised.
👉 Whether you are a factory or a startup, we provide the right solution.
