At the interface where a liquid contacts a gas or a solid, the meniscus phenomenon is a common physical occurrence, driven primarily by surface tension. To fully understand this phenomenon and its influence on inkjet printing, it is necessary to analyze it from three levels: fundamental principles, specific mechanisms of action, and practical impacts on applications.
I. Formation Mechanism of the Meniscus: The “Shaping Effect” of Surface Tension
The essence of liquid surface tension lies in the imbalance of forces acting on molecules at the liquid surface, which creates a natural tendency to contract. Molecules within the bulk of a liquid experience balanced intermolecular attractions, whereas surface molecules are attracted mainly by molecules beneath them. This imbalance results in a “contractive force” that continually attempts to minimize the liquid’s surface area.
When a liquid comes into contact with container walls (such as the inner walls of an inkjet nozzle) or other media, surface tension interacts with interfacial adhesion forces and the liquid’s own gravity. The combined effect of these forces causes the liquid surface to curve, forming either a concave or convex meniscus.
More specifically, the shape of the meniscus is determined by the contact angle:
- When the adhesive force between the liquid and the solid surface is greater than the liquid’s internal cohesive force (e.g., water on glass), the liquid spreads along the surface, and surface tension pulls the liquid upward along the wall, forming a concave meniscus.
- When the cohesive force exceeds the adhesive force (e.g., mercury on glass), the liquid tends to contract into a spherical shape to reduce surface area, forming a convex meniscus.
Inside an inkjet nozzle, the meniscus of the ink is determined by a balance among the ink’s adhesion to the nozzle material (metal, ceramic, etc.), the ink’s cohesive force, and the internal pressure within the nozzle. The observed meniscus shape is therefore the direct result of this multi-force equilibrium.
II. Key Effects of the Ink Meniscus in Inkjet Printing: A Chain Reaction from Speed to Precision
Inkjet printing requires extremely high precision during the process in which ink droplets are ejected from the nozzle and deposited onto the substrate—often at the micrometer level. As the initial shape of the ink just before ejection, the meniscus influences the flow behavior of the ink and thus directly affects printing performance. Its impact is mainly reflected in two aspects: ink velocity and printing accuracy.
(1) Impact on Ink Velocity: Altering the Balance of Ejection Forces
The core principle of inkjet printing is to apply pressure (mechanical pressure in piezoelectric systems or vapor pressure in thermal bubble systems) to push ink out of the nozzle, overcoming surface tension to form droplets. The shape of the meniscus directly affects the balance between applied pressure and surface tension, thereby influencing ejection velocity:

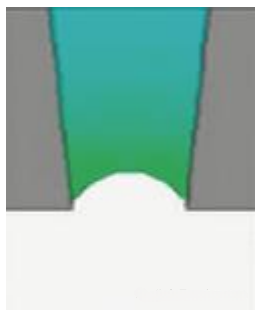

- Large-curvature concave meniscus: When the meniscus is deeply concave inside the nozzle, adhesion between the ink and nozzle wall is stronger, and the restraining effect of surface tension is reduced. Under the same driving pressure, the ink encounters less resistance and is ejected at a higher velocity.

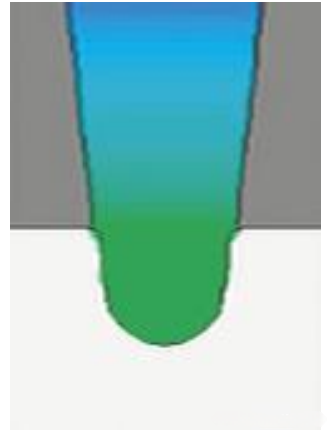

- Large-curvature convex meniscus: When the meniscus bulges outward, cohesive forces dominate, and surface tension exerts a stronger constraining effect. The driving pressure must overcome this additional restraint, resulting in a lower ejection velocity.
- Unstable meniscus shape: If the meniscus curvature fluctuates due to variations in ink composition or nozzle wear, ink velocity becomes inconsistent. For example, within the same print line, some droplets may travel faster while others are slower, laying the groundwork for subsequent precision issues.
(2) Impact on Printing Accuracy: Determining Droplet Shape and Landing Stability
Key indicators of printing accuracy include droplet size uniformity and drop placement accuracy, both of which are closely related to the meniscus shape.
- Droplet size uniformity
The meniscus serves as the initial contour of droplet formation. If the meniscus shape is stable (e.g., a consistent concave curvature), each droplet undergoes a uniform transition from initial formation to detachment and contraction, resulting in minimal size variation (typically within 5%).
Conversely, if the meniscus curvature is unstable, the initial volume of each ejected droplet varies. After detachment and surface-tension-driven contraction, the final droplet sizes differ significantly. Oversized droplets may cause ink spreading or bleeding on the substrate, while undersized droplets can lead to broken lines or missing image details. - Drop placement accuracy
Stable ink velocity is essential for accurate drop placement. Velocity fluctuations caused by meniscus instability result in positional errors: faster droplets overshoot the intended landing point, while slower droplets fall short.
Furthermore, an asymmetric meniscus—for example, due to uneven nozzle wall wear causing stronger adhesion on one side—can introduce lateral forces during ejection. This leads to droplet trajectory deviation, where droplets intended to land along a straight line shift sideways. In high-precision applications such as PCB fabrication or micro-sensor printing, even slight misalignment can render a product defective.
III. Practical Control Strategies: Stabilizing the Meniscus at Its Source
Given the critical role of the meniscus, inkjet printing systems typically employ the following strategies to stabilize its shape and ensure consistent printing performance:
- Ink formulation optimization: Adjusting ink surface tension (e.g., by adding surfactants) and viscosity to modify adhesion between the ink and nozzle material. For metal nozzles, lowering surface tension can help form a stable concave meniscus and reduce velocity fluctuations.
- Nozzle design and maintenance: High-precision manufacturing ensures smooth, round nozzle inner walls, preventing asymmetric meniscus formation. Regular cleaning prevents ink residue buildup that could distort the meniscus.
- Pressure parameter matching: By dynamically adjusting driving pressure according to the observed meniscus shape (for example, using image sensors to monitor curvature in real time), ink velocity can be matched to meniscus conditions, minimizing drop placement errors.
IV. Conclusion: The Meniscus as a Key Physical Node in Inkjet Precision Control
In summary, the liquid meniscus is far more than a simple physical phenomenon. In inkjet printing, it represents a critical link between liquid physical properties and printing performance. By influencing ink ejection velocity, the meniscus directly affects droplet size uniformity and drop placement accuracy, ultimately determining overall print precision.
Therefore, understanding and controlling meniscus behavior is a key step in advancing inkjet printing from theoretical principles to high-precision industrial applications—such as industrial 3D printing and microelectronics manufacturing—and remains an essential direction for future optimization of inkjet technologies.
