I. Environmental Preconditioning: Winter Temperature, Humidity, and Ink Condition Control
1. Closed-Loop Temperature Management
◦ The working environment temperature must be stabilized at 15–25°C (activate the printhead heating function if below 15°C), and temperature fluctuations must not exceed ±5°C (every 5°C fluctuation can cause a 20 μm positional deviation of the printhead, intensifying waveform distortion).
◦ Ink must be preheated in the working environment at least 2 hours in advance to prevent viscosity surge caused by low temperatures (original factory reference viscosity: 3.5 cP; when winter temperatures drop below 10°C, viscosity may rise above 8 cP).
◦ Enable the equipment’s built-in dual heating system (printhead heating + ink path insulation) to maintain the printhead surface temperature at 28–30°C, ensuring proper ink fluidity.
2. Humidity and Electrostatic Protection
◦ Control ambient humidity within 40–60%. In dry winter conditions, use a humidifier to prevent ink from drying too quickly and clogging nozzles, while also reducing electrostatic interference with droplet trajectory.
◦ Ensure equipment grounding resistance ≤4Ω. Printing media should be de-staticized in advance (e.g., using an anti-static bar) to prevent electrostatic discharge from damaging piezo elements or causing droplet scattering.
II. Core Parameter Adjustment: Winter-Specific Limits and Compensation Logic
(1) Adjustment Principles
- Only adjust the two core parameters: Main Pulse Voltage and Pulse Width. Keep damping negative voltage at -15V or slightly adjust to -12V (to prevent insufficient negative pressure leading to droplet tailing).
- Single adjustment amplitude: voltage ≤±5V, pulse width ≤±10%. For pigment inks, reserve an additional +1V safety margin to prevent piezo element overload and burnout.
(2) Winter Parameter Compensation Formula and Range
1. Main Pulse Voltage
◦ Core compensation logic: Low temperatures increase ink viscosity; voltage must be increased to overcome resistance. Reference formula:
V_winter = V_factory + 0.5 × (η_measured − 3.5) + 0.35 × (25 − T_environment)
Where:
η_measured = actual winter ink viscosity (cP)
T_environment = actual working temperature (°C)
Final voltage must not exceed the 42V upper limit.
◦ Practical range: Increase +2V to +5V based on factory voltage (example: factory 20V, adjust to 22–25V in winter).
2. Pulse Width
◦ In winter, extend the piezo crystal deformation time. Based on the factory default of 1.8 μs, increase by 5–10% to 1.9–2.0 μs (for 3/4 grayscale mode, further extend to 2.2 μs).
3. Temperature-Link Compensation
◦ If the device supports automatic temperature compensation (TC), directly enable the winter waveform preset (15–25°C corresponding parameters), eliminating manual adjustment.
◦ Without automatic function, increase voltage by 0.7V for every 5°C drop in temperature.
III. Operational Procedure: Safe Adjustment and Validation Steps
1. Preparation Before Adjustment
◦ Back up the original waveform file and store it offline (to prevent irrecoverable parameter corruption).
◦ Perform deep printhead cleaning twice and print a nozzle check pattern to confirm no obvious missing lines (adjusting waveform under clogged conditions may worsen faults).
◦ Use an oscilloscope to check waveform symmetry: rising edge slope must remain stable at 8V/μs. If deviation occurs, calibrate hardware before adjusting parameters.
2. Adjustment and Verification Loop
◦ Adjust single parameter → save → print test strip → observe droplet condition (requirements: droplet velocity 8±0.5 m/s, satellite droplet ratio ≤3%).
◦ Common issue rollback solutions:
▪ Ink misting or fogging: reduce voltage by 0.5V, shorten pulse width by 3%.
▪ Persistent missing lines: clean the printhead first instead of further increasing voltage (to avoid head erosion).
▪ Light color density: appropriately extend pulse width rather than blindly increasing voltage.
3. Parameter Finalization
◦ After meeting standards, save parameters as “Winter-Specific Waveform,” labeled with temperature range (e.g., “Waveform_Winter 15–20°C”) for reuse next year.
◦ Record adjustment logs (viscosity, temperature, parameter values).
IV. Winter Maintenance: Waveform Stability Coordination Measures
1. Regular Calibration Cycle
◦ Recheck droplet condition and fine-tune waveform every 100 printing hours or when ambient temperature changes ±3°C.
◦ After weekly startup, perform a nozzle check before waveform calibration.
2. Printhead and Ink Path Maintenance
◦ Before daily startup: open the blue ink tank vent plug and let stand for 2 hours to release air (preventing air ingestion and ink starvation), then perform one automatic cleaning cycle.
◦ Long idle period (>3 days): after printing a test strip, soak nozzles in dedicated cleaning solution for 10 minutes to prevent ink drying and clogging. Upon resuming use, waveform readjustment is required.
3. Consumable Compatibility Requirements
◦ Only use original or certified inks (low-quality inks crystallize easily in winter, rendering waveform adjustments ineffective). Use within 3 months after opening.
◦ Check ink tubes for hardening or bending due to low temperatures and replace aged tubing promptly.
Below is an example of waveform adjustments for equipment not operating in a temperature-controlled workshop, comparing summer (around 40°C) and winter (below 10°C) conditions:
Taking the I3200 waveform as an example:

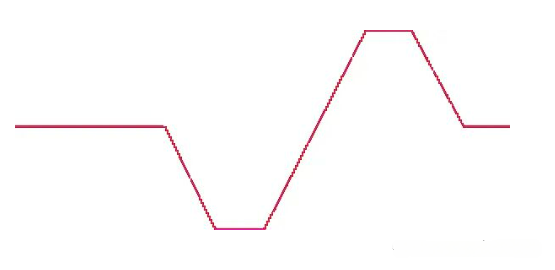

Summer waveform:

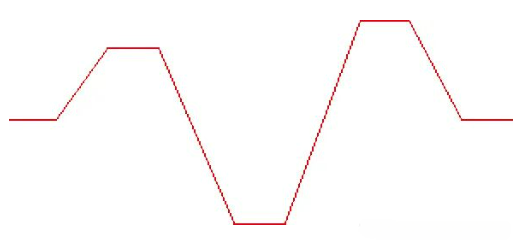

Winter waveform adjustment:
