I. Basic Definitions: The Fundamental Nature of the Two Tools

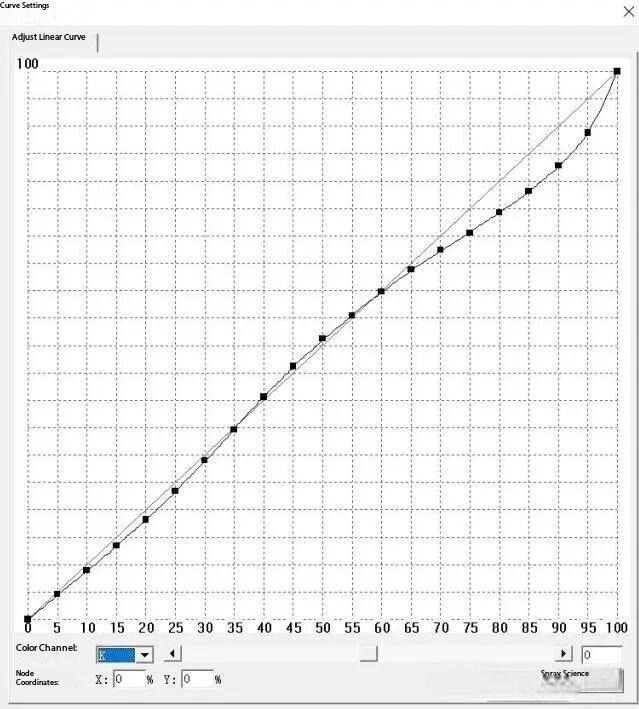

1. Inkjet Curves (Curves)
Inkjet curves consist of four independent curves that separately control the tonal response of the Cyan, Magenta, Yellow, and Black channels.
For example, how much ink corresponds to a 50% gray signal, or how dot gain expands at an 80% signal, is defined directly by these curves.
2. ICC Profiles (ICC Profiles)
An ICC profile is a three-dimensional description of a device’s color characteristics, defined under standards set by the International Color Consortium (ICC). Using the Lab color space as an intermediary, it establishes color-mapping relationships between input (such as RGB design files) and output (such as printed CMYK).
An ICC profile includes not only tonal data but also comprehensive information such as device gamut, gray balance, overprint behavior, paper white point, and more—essentially serving as a device’s “color ID card.”
II. Core Functions: Solving Problems at Different Levels
1. Core Value of Inkjet Curves
- Precise tonal control: Corrects tonal distortion caused by individual printhead differences or ink spreading. For example, in T-shirt printing, curves fine-tune ink volume across different gray levels to prevent banding or broken gradients.
- Basic device calibration: Acts as the “baseline setting” of an inkjet system, solving single-channel linearity issues. For instance, curves can compensate for ink density loss caused by high-temperature firing in ceramic inkjet printing, ensuring that 10%–100% tonal values reproduce proportionally.
- Rapid parameter adaptation: When inks or media are changed, curves allow quick adjustment of output characteristics without rebuilding the entire color system.
2. Core Value of ICC Profiles
- Cross-device color consistency: The key tool for eliminating discrepancies between on-screen display and printed output. For example, when an ICC profile for a specific Epson paper is loaded into design software, the screen preview can closely match the final print, reducing color shifts.
- Complex color space conversion: Handles multi-channel color interactions. In ceramic inkjet printing, ICC profiles can accurately convert RGB designs into output signals for special inks (such as blue, brown, or yellow) and predict final colors after firing.
- Standardized production reference: When kilns or glazes are changed on the same production line, simply updating the corresponding ICC profile ensures consistent color across batches, significantly reducing trial-and-error costs.
III. Key Differences: A Comprehensive Comparison from Dimensions to Applications
| Comparison Dimension | Inkjet Curves | ICC Profiles |
| Data dimensionality | 2D (input tone → output parameter) | 3D (color mapping in Lab space) |
| Information scope | Single-channel tonal data only, no color relationship information | Full-spectrum data including gamut, tone response, gray balance, etc. |
| Operational logic | “Point-to-point” calibration for a single device | “Cross-device” conversion based on a standard color space |
| Adjustment method | Can be manually fine-tuned (e.g., Photoshop curve tools) | Must be generated via professional measurement instruments; not manually editable |
| Reference dependency | No standard color reference required; adjusted by output results | Must be built on the Lab standard color space |
IV. Practical Applications: A Complementary Workflow
In professional inkjet production, curves and ICC profiles are not mutually exclusive but form a progressive workflow of “baseline calibration → precise color matching.”
1. Step One: Curve-Based Baseline Calibration
Use a densitometer to measure printed grayscale strips and generate curves that compensate for dot gain. For example, in digital textile printing, curves are first applied to ensure linear tonal behavior for each CMYK channel, preventing single-color bias.
2. Step Two: ICC Profile Construction
Use instruments such as X-Rite devices to measure the Lab values of 288 standard color patches. Combined with the already calibrated curves, generate an ICC profile tailored to the specific combination of device + ink + media.
3. Step Three: Scenario-Based Application
- Daily production: Apply the ICC profile corresponding to the selected medium to achieve accurate color output (e.g., choosing a “Matte Paper ICC” in an Epson driver).
- Parameter adjustments: After changing inks, fine-tune curves and then use the ICC profile to verify color consistency, without re-measuring the entire color chart.
V. Common Misconceptions Clarified
- Misconception 1: “ICC profiles are just advanced curves.”
❌ Incorrect. ICC profiles include curve data, but curves are only a basic component of ICC profiles and cannot replace their color space conversion capabilities. - Misconception 2: “Curve adjustments can fix all color casts.”
❌ Incorrect. Curves only correct single-channel issues. Multi-channel color casts (such as yellowish skin tones) require ICC-based gray balance adjustments. - Misconception 3: “A universal ICC profile works in all scenarios.”
❌ Incorrect. ICC profiles are highly specific. Even on the same printer, switching from matte paper to glossy paper requires a different ICC profile.
