Dithering Algorithm Technology in Inkjet Systems

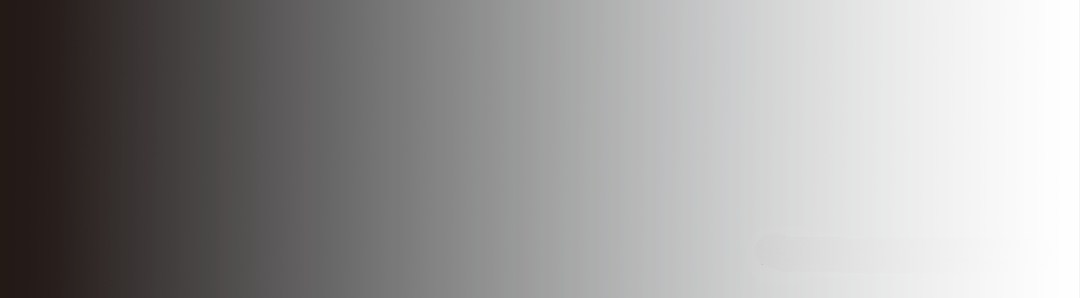

Dithering algorithms in inkjet systems are a key image-processing method that uses spatial frequency modulation to simulate continuous tonal effects under conditions of limited color depth.
The core principle is based on the persistence of vision and spatial mixing effects of the human visual system. By precisely controlling the density and arrangement of ink droplets at the microscopic scale, the color information of adjacent pixels is perceptually fused, thereby overcoming hardware color-level limitations. For example, in an inkjet printer that can output only binary black and white, a dense alternating pattern of black and white dots in a 50% gray area can create the visual illusion of neutral gray on the observer’s retina.
Essentially, this technique is a spatial error-distribution process that sacrifices local accuracy to improve global perceptual quality. Its mathematical foundation lies in the limited ability of the human visual system to resolve high-frequency details: when the dot pattern period is smaller than the minimum resolvable visual angle of the human eye (approximately 1 arcminute), discrete physical ink dots are automatically interpreted by the brain as continuous color regions.
In the field of inkjet printing, dithering algorithms mainly fall into two technical categories: ordered dithering and error diffusion. Ordered dithering (such as Bayer matrix dithering) uses a predefined threshold matrix to arrange pixel dot patterns periodically, achieving color quantization through fixed templates. Its advantages include high computational efficiency and simple hardware implementation, making it particularly suitable for industrial inkjet systems with stringent real-time requirements. However, it tends to produce visible regular textures, such as rosette artifacts.
In contrast, error diffusion algorithms (such as Floyd–Steinberg dithering) employ dynamic error compensation, distributing the quantization error of the current pixel to subsequent unprocessed neighboring pixels according to weighting coefficients. This approach effectively eliminates the periodic artifacts of ordered dithering and produces more natural gradient transitions, but it requires greater computational resources and is more sensitive to printing media characteristics.
Current technological evolution shows two major trends. The first is the development of hybrid algorithms, which combine the structural stability of ordered dithering with the visual smoothness of error diffusion. The second is deep-learning-based adaptive dithering, in which neural networks are trained to predict optimal ink-droplet distribution schemes, significantly reducing computational complexity while maintaining print quality. For example, some industrial piezoelectric inkjet systems have adopted convolutional neural networks to dynamically adjust dithering parameters, enabling a single device to achieve optimal visual results on both plain paper and photo paper.
Applications of dithering algorithms in digital inkjet printing are highly specialized, with their core value lying in achieving a delicate balance between hardware constraints and visual quality through intelligent ink-droplet distribution strategies. In high-speed industrial production environments—such as digital textile printing or packaging printing—ordered dithering is often preferred due to its computational efficiency. Using predefined Bayer matrix templates, inkjet heads can complete precise multi-color droplet placement within microseconds, ensuring stable continuous output of tens of square meters per minute.
In contrast, high-precision scenarios such as fine-art reproduction rely on error diffusion techniques. Their dynamic error compensation mechanisms can delicately render tonal transitions of oil-painting brushstrokes, improving color-gradient smoothness in museum-grade reproductions by more than 40%.
Current breakthroughs focus on real-time, environment-adaptive systems. Some industrial devices have integrated spectral sensors and feedback control modules to dynamically detect media ink-absorption characteristics and adjust dithering parameters, eliminating ink bleed when printing the same pattern on cotton, linen, or silk fabrics. More advanced applications, such as micro- and nano-scale 3D printing, use deep-learning-based dithering algorithms to analyze surface curvature of 3D models and automatically optimize droplet stacking paths, reducing interlayer stair-step effects to an imperceptible level of approximately 0.1 micrometers. This marks the extension of dithering technology from planar color management to three-dimensional structural manufacturing.
Inkjet Dithering Algorithm Implementation – Source Code Sharing
Implementation Principles and Code Examples of Dithering Algorithms in Inkjet Printing
I. Technical Background
Dithering algorithms achieve high-quality grayscale image output on binary inkjet devices through pixel-level error diffusion. The core idea is to leverage the human visual system’s spatial mixing characteristics, distributing quantization errors to avoid banding artifacts caused by color quantization.
II. Classic Algorithm Implementations
1. Floyd–Steinberg Algorithm
Below is an example implementation in MATLAB:
function floyd_steinberg_dithering(image)
% Convert image to grayscale
grayscale_image = rgb2gray(image);
% Initialize output image
dithered_image = image;
% Process each pixel
for i = 1:height(grayscale_image)
for j = 1:width(grayscale_image)
% Get current pixel value
current_pixel = grayscale_image(i,j);
% Quantization error
error = current_pixel – round(current_pixel);
% Diffuse error
dithered_pixel = round(current_pixel) + error * 7/16;
% Update corresponding pixel in output image
dithered_image(i,j) = dithered_pixel;
% Distribute error to neighboring pixels
if i > 1 && j > 1
dithered_image(i+1,j) = dithered_image(i+1,j) + error * 3/16;
dithered_image(i-1,j+1) = dithered_image(i-1,j+1) + error * 5/16;
dithered_image(i+1,j+1) = dithered_image(i+1,j+1) + error * 1/16;
end
end
end
return dithered_image;
end
Code Explanation
This code implements the core logic of the Floyd–Steinberg algorithm:
- Quantization error calculation:
Each pixel is rounded to the nearest value, and the error is computed as
error = current_pixel − rounded_value. - Error diffusion:
The error is distributed to neighboring pixels using the weights
7/16, 3/16, 5/16, and 1/16, determined by the distance from the current pixel. - Processing order:
By default, raster scanning is used (left to right, top to bottom).
This can also be modified to serpentine scanning (odd rows left-to-right, even rows right-to-left) as required.
2. C++ Implementation Example
#include <iostream>
#include <vector>
using namespace std;
// Function to quantize a grayscale value to the nearest 8-bit color
int quantizeColor(int color) {
return (color * 255 + 127) / 255; // Simple rounding quantization
}
// Main function implementing Floyd–Steinberg error diffusion
void floydSteinbergDithering(vector<vector<int>>& image, int width, int height) {
for (int y = 0; y < height; ++y) {
for (int x = 0; x < width; ++x) {
int oldPixel = image[y][x];
int newPixel = quantizeColor(oldPixel);
int error = oldPixel – newPixel; // Calculate error
// Apply error to neighboring pixels
if (x + 1 < width)
image[y][x + 1] += (error * 7) / 16; // Right
if (y + 1 < height) {
if (x – 1 >= 0)
image[y + 1][x – 1] += (error * 1) / 16; // Bottom-left
if (x + 1 < width)
image[y + 1][x + 1] += (error * 5) / 16; // Bottom-right
image[y + 1][x] += (error * 3) / 16; // Bottom
}
image[y][x] = newPixel; // Update current pixel
}
}
}
int main() {
// Example: a simple grayscale image
vector<vector<int>> image = {
{200, 230, 255, 200},
{220, 240, 250, 180},
{210, 235, 245, 190}
};
int width = image[0].size();
int height = image.size();
cout << “Original Image:” << endl;
for (const auto& row : image) {
for (int pixel : row) {
cout << pixel << ” “;
}
cout << endl;
}
floydSteinbergDithering(image, width, height);
cout << “\nImage after Floyd–Steinberg Dithering:” << endl;
for (const auto& row : image) {
for (int pixel : row) {
cout << pixel << ” “;
}
cout << endl;
}
return 0;
}
III. Inkjet System Optimization Considerations
- Ink diffusion compensation:
Error weights should be adjusted according to inkjet characteristics (e.g., Epson Micro Piezo technology). - Real-time performance optimization:
Use lookup tables (LUTs) to accelerate threshold and quantization calculations. - Color management:
In CMYK color space, dithering must be performed separately for each channel.
IV. Hardware-Software Co-Design
Modern inkjet systems (e.g., HP PageWide) typically implement dithering algorithms directly in FPGA hardware, combined with the following parameters:
- Nozzle array density: ≥1200 dpi
- Droplet volume: 2–4 pL
- Grayscale levels: 256 levels via piezoelectric control
This tight hardware-software integration ensures both high image quality and real-time performance in industrial inkjet printing systems.
