The droplet observation instrument is a precision device used to analyze the dynamic characteristics of ink droplets during inkjet printing. It is widely applied in industrial printing, electronic circuit printing, and bioprinting. The following summarizes its core functions and technical features:
1. Core Functions
1.1 Dynamic Parameter Measurement
- Capable of real-time capture of droplet velocity (accuracy ±0.5%), volume (resolution 0.1 pL), and flight angle (detection accuracy ±0.5°), supporting single or dual droplet synchronous analysis.
- Uses high-speed imaging (up to 80,000 frames per second) to record droplet trajectories, identifying satellite droplets, tailing, and other anomalies.
1.2 Print Quality Verification
- Integrates the printhead module with a motion system to enable verification printing, allowing actual print testing while observing the droplets.
2. Technical Features
| Feature | Description |
| High-Speed Imaging | Integrates multispectral illumination with high-speed cameras (e.g., 1000 fps zoom microscopy systems), adaptable to inks of different refractive indices. |
| Automated Analysis | Built-in algorithms automatically calculate droplet parameters (e.g., ejection stability, tail length) and generate quantitative reports. |
| Multi-Angle Observation | Some systems use dual cameras for synchronous shooting, improving the comprehensiveness of parameter measurement. |
3. Typical Applications
- Industrial Printing: Evaluates droplet flight stability before UV ink curing, optimizing printhead parameters.
- Electronic Circuits: Ensures precise positioning of conductive silver ink droplets (e.g., for OLED printing equipment).
- Bioprinting: Monitors the morphology of cell-laden microdroplets, ensuring biocompatibility.
4. Technical Principle Analysis
4.1 Core Observation System

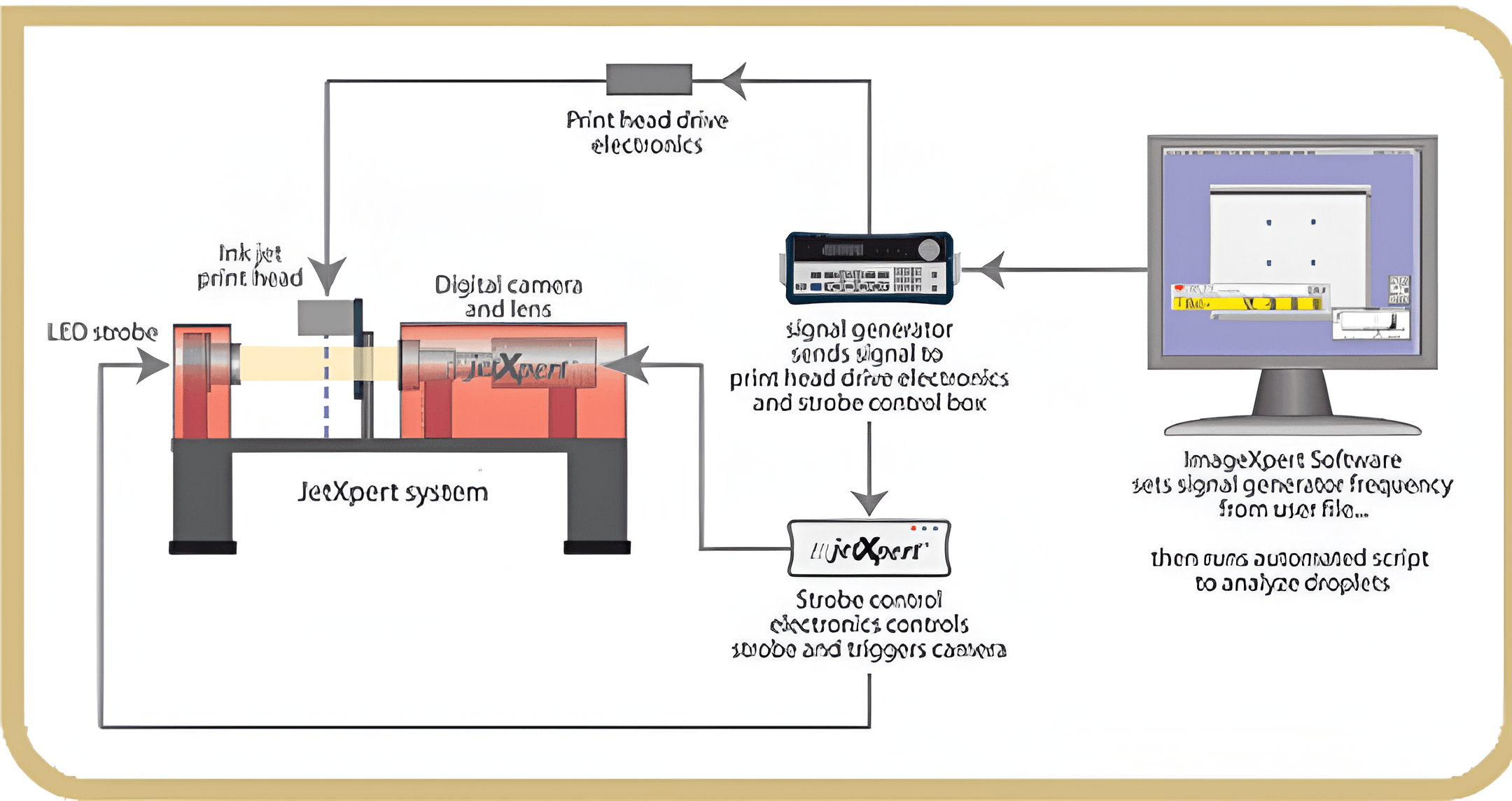

- Optical Imaging Module: Utilizes a high-speed CCD camera (frame rate ≥100,000 fps) combined with multispectral LED illumination, capturing droplet trajectories via synchronized triggering technology.
- Motion Control Module: Comprises an XYZ three-axis precision movement platform (positioning accuracy ±0.5 μm) to dynamically align the printhead with the observation area.

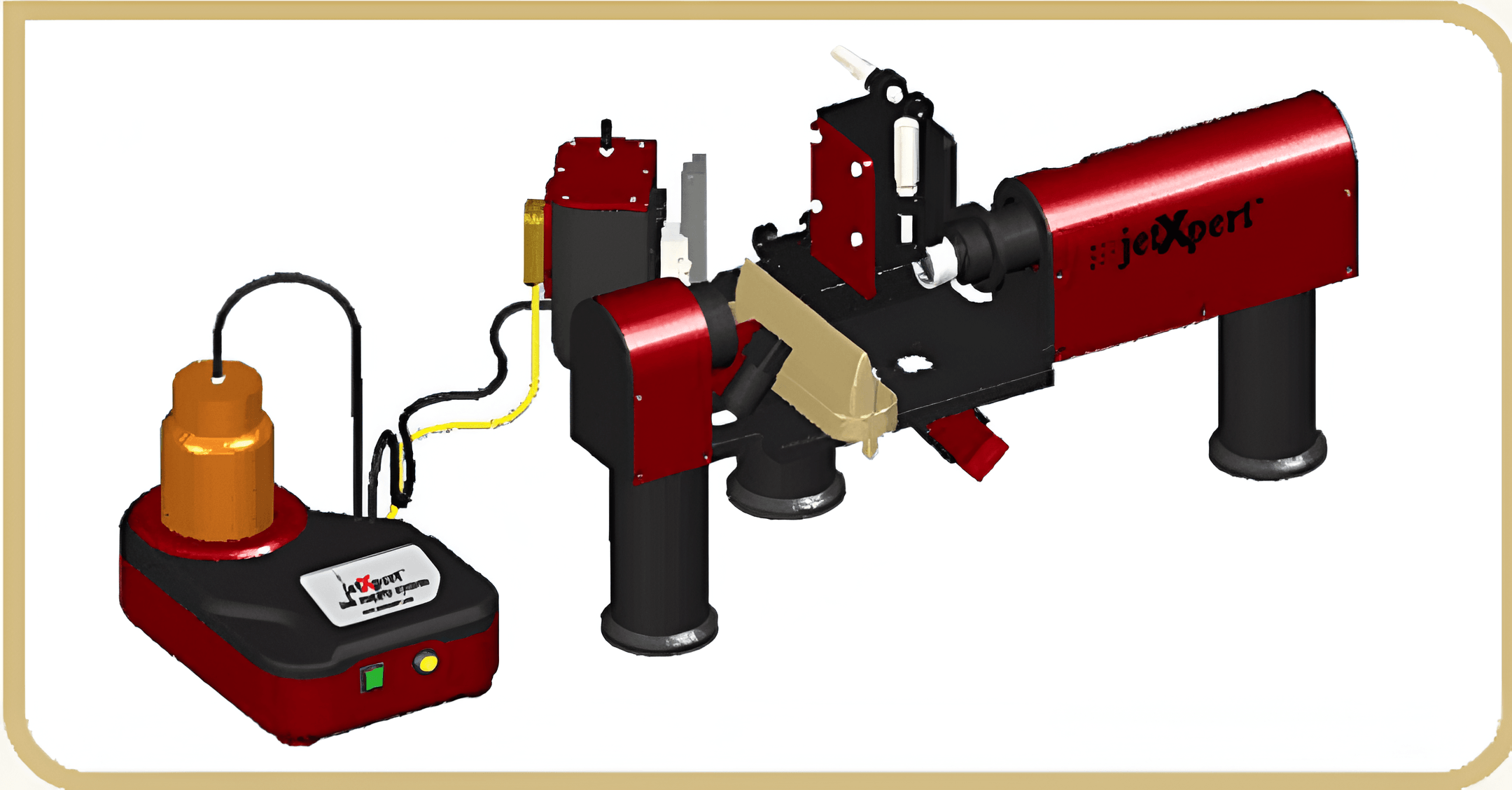

- Data Analysis Unit: Processes images to calculate droplet volume (accuracy ±0.1 pL), velocity (error <0.1 m/s), and satellite droplet generation rate.
4.2 Key Technical Breakthroughs

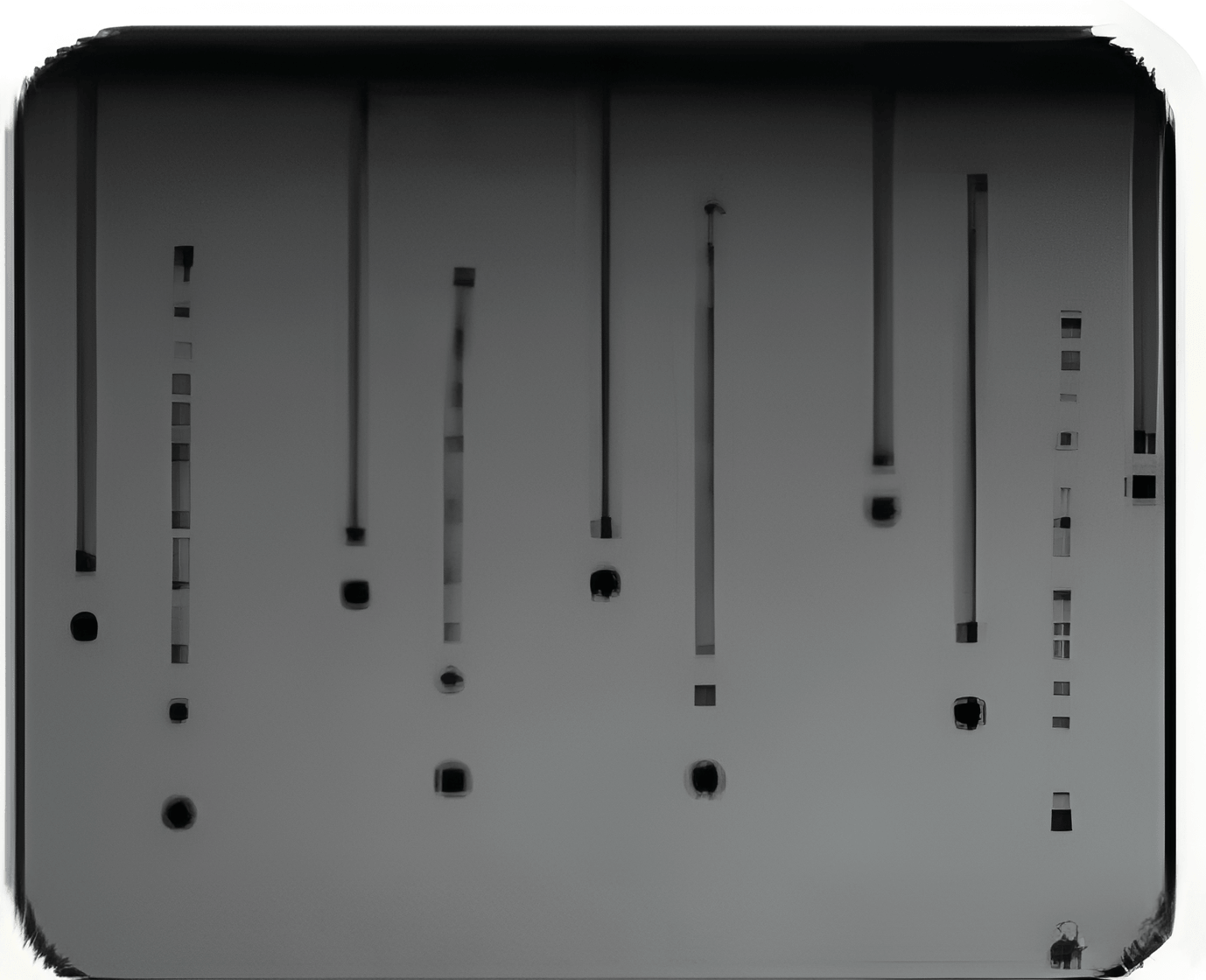

- Dual-Frequency Flash Illumination: Alternating LED flashes eliminate motion blur and enhance high-speed droplet imaging clarity.
- Synchronized Multi-Parameter Acquisition: Integrates pressure sensors and temperature compensation modules for real-time correlation between droplet morphology and printing parameters.
- Closed-Loop Feedback System: Observation data is fed directly back to the inkjet control system to dynamically adjust the piezoelectric driving waveform (response time <1 ms).
