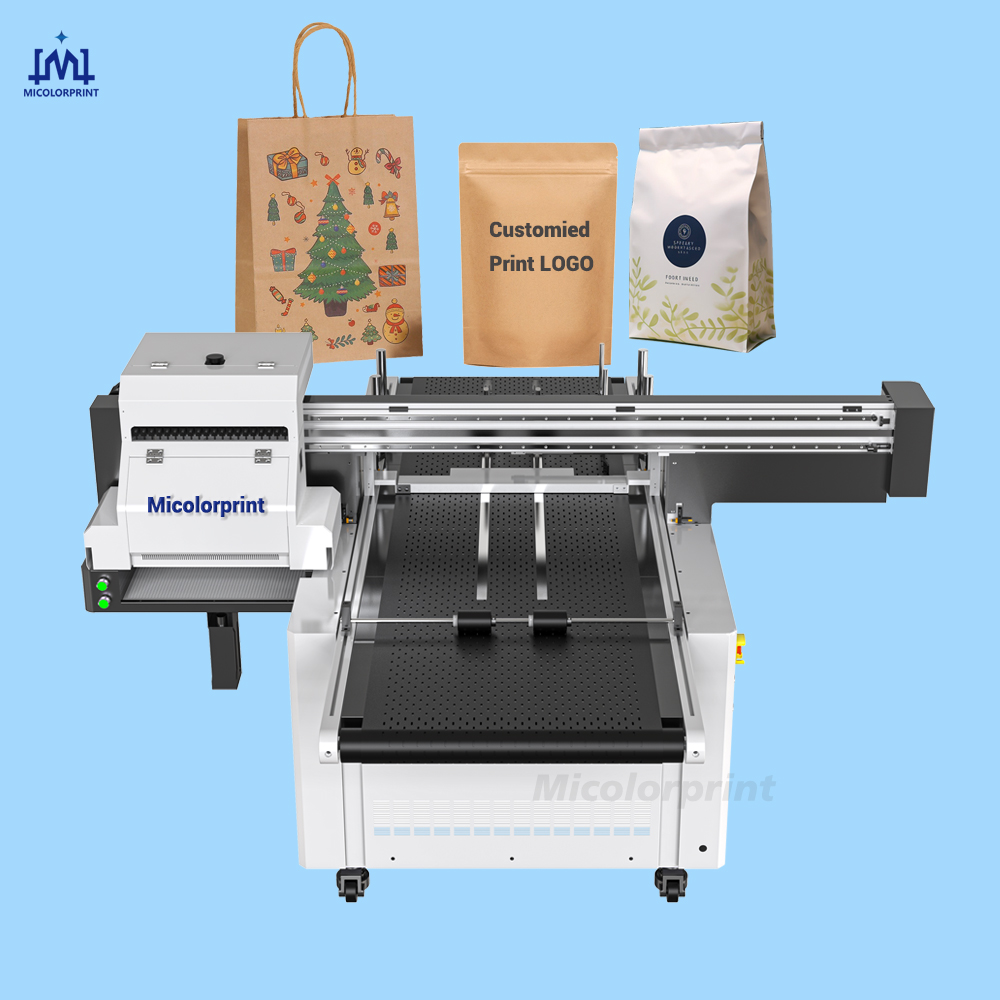

MC-650 fully automatic Assembly Line UV printer replaces the traditional UV printer, replaces the screen printing offset press, and replaces the traditional printing press. Designed for fast, continuous packaging printing. Achieve vibrant colors, sharp details, and stable performance on corrugated boxes and kraft paper bags—ideal for factories and high-volume production lines.
The Assembly Line UV Printer (MC-650) is specially designed for high-speed, large-volume industrial packaging printing. It enables direct UV printing on corrugated cartons, paper boxes, and kraft paper bags up to 600 mm in width, without plates or pre-printing processes.
This machine is an ideal alternative to traditional screen printing and offset printing, helping packaging manufacturers achieve higher efficiency, better print quality, and lower operating costs. It is widely used in e-commerce packaging, custom carton production, and industrial packaging lines.
One-pass printers can also be called high-speed UV flatbed printers. Different from the scanning printing method of traditional printers, the head of the printer does not move, and a conveyor belt underneath transmits the product to be printed. When the object passes the sensing device in front of the head, it starts to spray ink and prints the ink to the specified position of the product. In fact, the method of speeding up is the same as that of traditional scanning printing, which is to increase the number of heads to achieve the speed of the assembly line. Generally, ONE PASS machines range from 1 to 20 heads, depending on how large your spray width is. Moreover, because it cannot be moved, the products it can print are also limited. For example, it cannot print at high speeds, and a large spray width requires too many heads, and the cost performance is not high. One-pass machines are only suitable for factories with high production and single products, such as lunch boxes, engravings, rulers, pens, lighters, cards, and other cheap and large-volume products that require customized patterns. Thus, the multi-pass UV printer was born, which integrates the advantages of traditional scanning printers and one pass. The printing speed depends on the number of print heads (up to 8 print heads can be equipped). Since the print heads are movable, there is no limitation on the printing format. 1-2 print heads can also print products of different formats. Multi-pass printer is cost-effective and is a potential product in the future.
Integrated conveyor system for continuous, non-stop production
Materials are fed automatically, eliminating manual positioning
Ideal for mass production and industrial packaging lines
Equipped with EPSON i3200U industrial UV printhead
Variable droplet technology with a minimum droplet size of 7 pL
Maximum print resolution up to 2880 dpi for sharp text and vivid images
Standard CMYK + White ink configuration (optional expansion available)
Large-capacity intelligent ink supply system for long-time stable operation
UV inks cure instantly, delivering durable, scratch-resistant prints
Direct printing on:
Corrugated cartons
Paper boxes
Kraft paper bags
Recommended printing thickness range: 0–15 mm
Supports common file formats: TIFF, PDF, JPEG, EPS, AI, PSD
High-speed USB connection for reliable data transmission
Compatible with mainstream RIP software and Windows OS
| Head configuration | Adopting the latest EPSON I1600/I3200U nozzle and ink drop variable technology, the maximum ink drop is 32pl, and the minimum can reach 7pl | |
| Number of head | 1-4 head (optional 4-8 head) | |
| Print Color | High precision intelligent four color white ink W+C, M, Y, K, four color ink (optional) | |
| Print height | 15mm (custom height available) | |
| Lifting function | Intelligent front lift | |
| Platform load-bearing | Non destructive accuracy Weight 100KG | |
| Printing accuracy | 2880dpi*1440dpi*720dpi*360dpi | |
| cleaning method | Imported negative pressure system facilitates ink extraction and prevents nozzle blockage | |
| ink system | 1000ml × Four colors/1000ML × 8-color, uninterrupted intelligent circulating continuous supply system | |
| Print speed(video one samples machine is 2 head, used 4 head tp print , the speed will be double) | W+C, M, Y, K, four colors+white 4 × C. M, Y, K (4 nozzles printing color simultaneously) | |
| 180×180dpi/ 280square meters/H -520square meters/H | ||
| 180×360dpi/ 280square meters/H -520square meters/H | ||
| 360*360dpi/ 280square meters/H -520square meters/H | ||
| 360*720dpi/ 280square meters/H -520square meters/H | ||
| 720*720dpi/ 280square meters/H -520square meters/H | ||
| 720*1440dpi/ 280square meters/H -520square meters/H | ||
| receive files | TIFF(RGB&CMYK),BMP,PDF,EPS,JPEG,AI,PSD | |
| Electricity requirements | AC220/110±10,50HZ~60HZ,P 100W | |
| Interface method | High speed USB transmission interface | |
| operating platform | MicrosoftWindows98/Me /2000 /XP/Win7/win10 | |
| Software output | Netherlands Color management software | |
| work environment | Optimal temperature: 15 ℃ -35 ℃, relative humidity 20% -80% | |
E-commerce carton printing
Customized packaging boxes

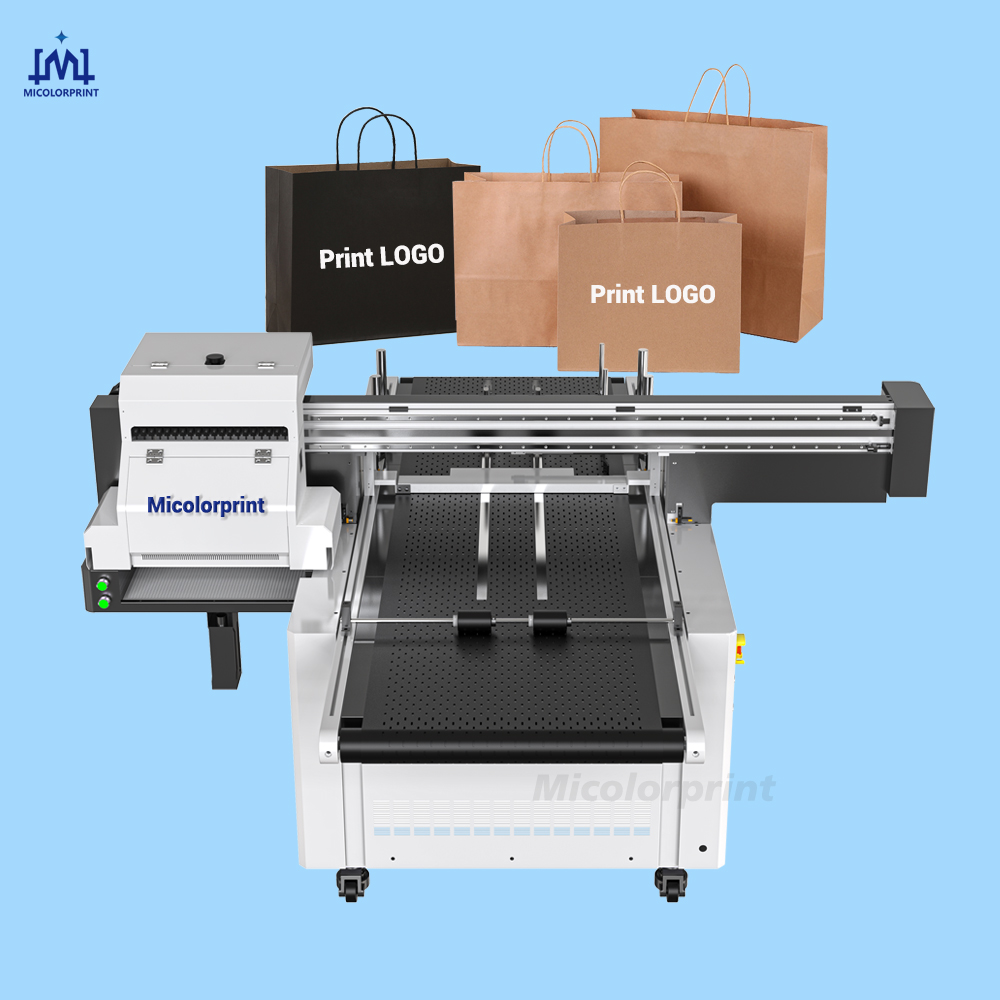

Kraft paper bag printing
Corrugated box branding
Retail & FMCG packaging production
Designed to meet the demands of high-efficiency, high-quality, and flexible packaging printing.
✔ No Plate-Making Required – Save setup time and printing costs
✔ High Production Efficiency – Continuous assembly-line printing
✔ Excellent Durability – UV prints are waterproof, scratch-resistant, and long-lasting
✔ Flexible Customization – Perfect for small batch or large-scale orders
Supports 110V / 220V power supply, suitable for global markets
Professional export packaging available
Multiple shipping options: air freight, express delivery, or sea freight
This printer is specially designed for corrugated cartons, paper boxes, and kraft paper bags. It supports direct printing on packaging materials with a thickness range of 0–15 mm. Other PVC, plastic, metal, glass… etc can print it.
The maximum printing width is 600 mm, making it ideal for most standard carton and packaging box sizes used in industrial production.(if you have a bigger print width of more than 600mm, we accepted customised it.
No. This is a direct-to-surface UV printer. It does not require plate making, screens, or pre-printing, which significantly reduces setup time and printing costs.
The machine is equipped with an EPSON I1600/I3200U industrial UV printhead, offering high precision, stable performance, and long service life.
The standard configuration is CMYK + White ink. White ink circulation ensures stable printing on brown kraft paper and dark packaging materials.
Yes. The integrated automatic conveyor and assembly line design allows continuous, high-speed printing, making it ideal for large-volume and industrial packaging production.
The printer supports TIFF, PDF, JPEG, EPS, AI, and PSD files and works with mainstream RIP software on Windows operating systems.
UV ink cures instantly under UV light, producing prints that are scratch-resistant, waterproof, and fade-resistant, suitable for long-term packaging use and transportation.
The printer supports AC 110V or 220V ±10%, 50/60 Hz, making it compatible with electrical standards in most countries.
Yes. We provide remote installation guidance, operation training, and after-sales technical support. On-site installation and training are also available upon request.
