High-speed Round Rotary UV Printer for 360° seamless printing on cylindrical and conical products such as tumblers, water bottles, mugs, perfume bottles, and more. Featuring rapid 360° rotation UV ink technology, this printer delivers vibrant full-color prints with white and varnish options in as little as 15–60 seconds per item.
Table of content.
A high-speed bottle printer means that a bottle can be printed quickly under high-speed 360-degree rotation, the completion time of a bottle is about 15s-60s, and the white color varnish can be printed at one time.
Welcome inquiry
WhatsApp number/Skype number/Facebook number +86 150 0012 2145
With a variety of printing schemes, a variety of effect printing, and no need for repeated overprinting, the advantages of personalized customized printing are outstanding. Customers can choose a variety of printing effects
Printing process:
1>white ink→color ink→varnish. The overprinting sequence of white color varnish is adopted, and white, color, and varnish are printed at the same time, which is completed at one time, and there is no need to repeat overprinting; repeated printing of white ink can produce a relief effect.
2>color ink→varnish. The overprinting sequence of color varnish is adopted, and the color and varnish are printed at the same time. Once completed, partial varnish can be printed; the brightness levels of light and dark are prominent, the printing is completed at one time, and there is no need to repeat overprinting.
3>white ink→color ink. Using the overprinting sequence of white color, any flat material can be printed, and the printing can be completed in one direction. At the same time, it can achieve partial color and white printing, and partial white ink overlap printing, which can achieve a partial relief effect.
4> Color ink. Single-color mode can directly output color on any material, which is widely used for printing, coloring, and local printing of various materials.
5> White ink. White ink mode can directly output white on any material, is mostly used to print white on dark background materials, and can also be overprinted with white ink to print relief effects.
Print Bottles, Tumblers, Cones, Water Bottles & Perfume Bottles with 360° Seamless UV Printing
This High-Speed Round Rotary Cylinder UV Printer is engineered for efficient, professional-grade printing directly onto cylindrical and tapered products. Designed to handle items like tumblers, thermos cups, water bottles, mugs, perfume bottles, tea cans, and more, it uses advanced 360° rotary UV printing technology to deliver high-quality, full-wrap graphics with exceptional color, detail, and durability.
Equipped with high-speed rotary printing, this UV cylinder printer can complete a full-wrap print in approximately 15–60 seconds per item, making it ideal for high-volume customized printing production.
The rotary system allows full-coverage wrap-around printing on cylindrical and conical items without gaps or distortions, delivering a professional finish on curved surfaces.
Utilizes UV-curable inks that cure instantly under UV light, producing vibrant, scratch-resistant, and long-lasting prints. Supports white ink, CMYK, and varnish effects in a single pass, offering enhanced visual depth and texture options.Alibaba
Perfect for printing on a wide variety of cylindrical objects, including:

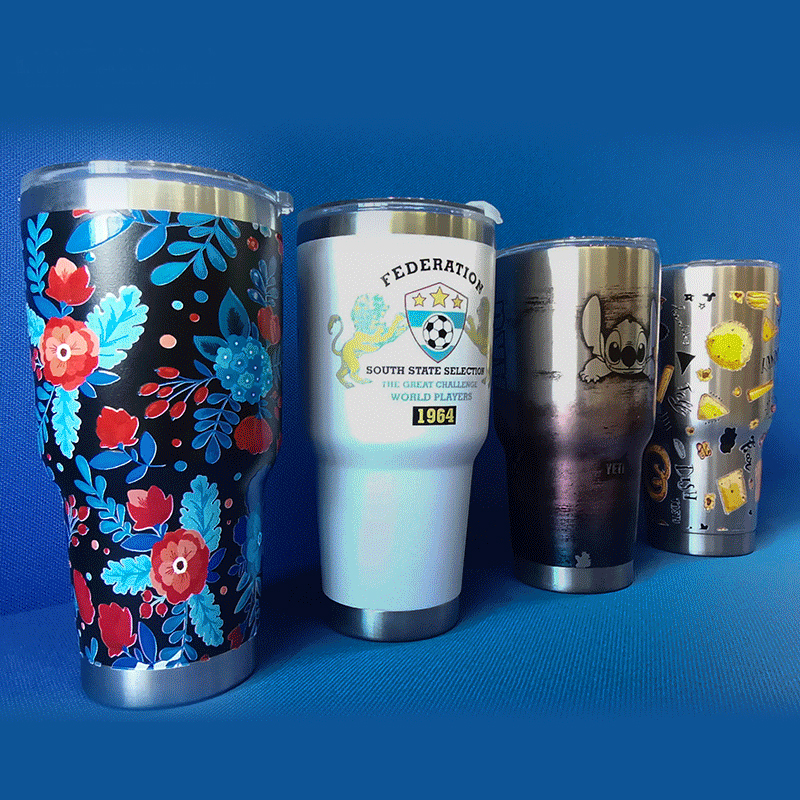

✔ Tumblers & Insulated Cups

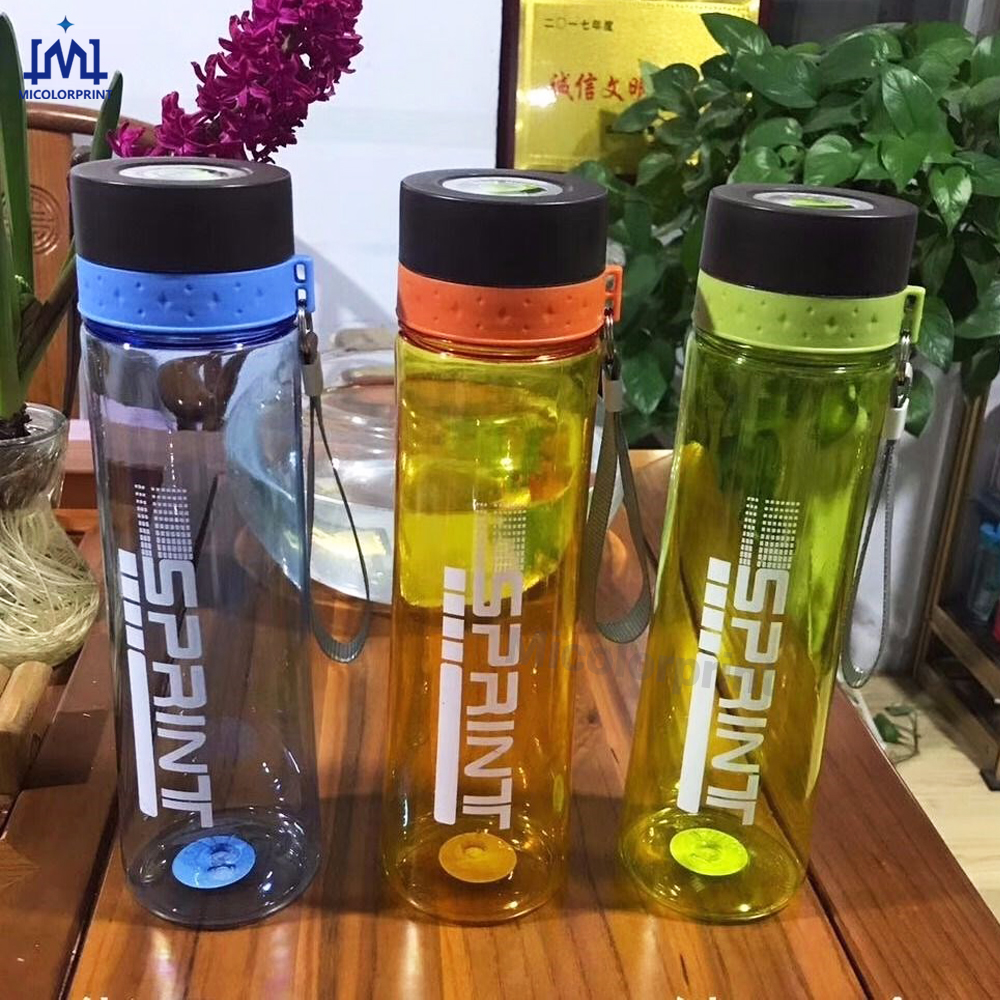

✔ Water Bottles & Sports Bottles
✔ Glass & Plastic Bottles
✔ Perfume & Cosmetic Bottles
✔ Mugs, Tea Cans, and More
Simply place the product, send your design to the machine from your computer, and the printer automatically(one-key print) handles the rest — from 360° rotation control to UV curing.
| Item | Specification | Item | Specification |
|---|---|---|---|
| Model | MC-HS-3R | Print Head | Ricoh G5i / Epson i3200 |
| Print Diameter | 30 mm – 270 mm | Heads Quantity | 2 – 6 pcs |
| Print Length | 20 mm – 400 mm | Ink Type | Eco-friendly UV ink |
| Print Speed | 15 – 60 s / pcs | Ink System | White ink circulation system |
| Resolution | 600 – 2800 DPI | Curing System | LED UV light |
| Angle Difference | 0 – 8° | Color Scheme | CMYK + LC + LM (Optional) |
| Adapt to Product | Cylinder, Cone | RIP Software | RIPRINT software |

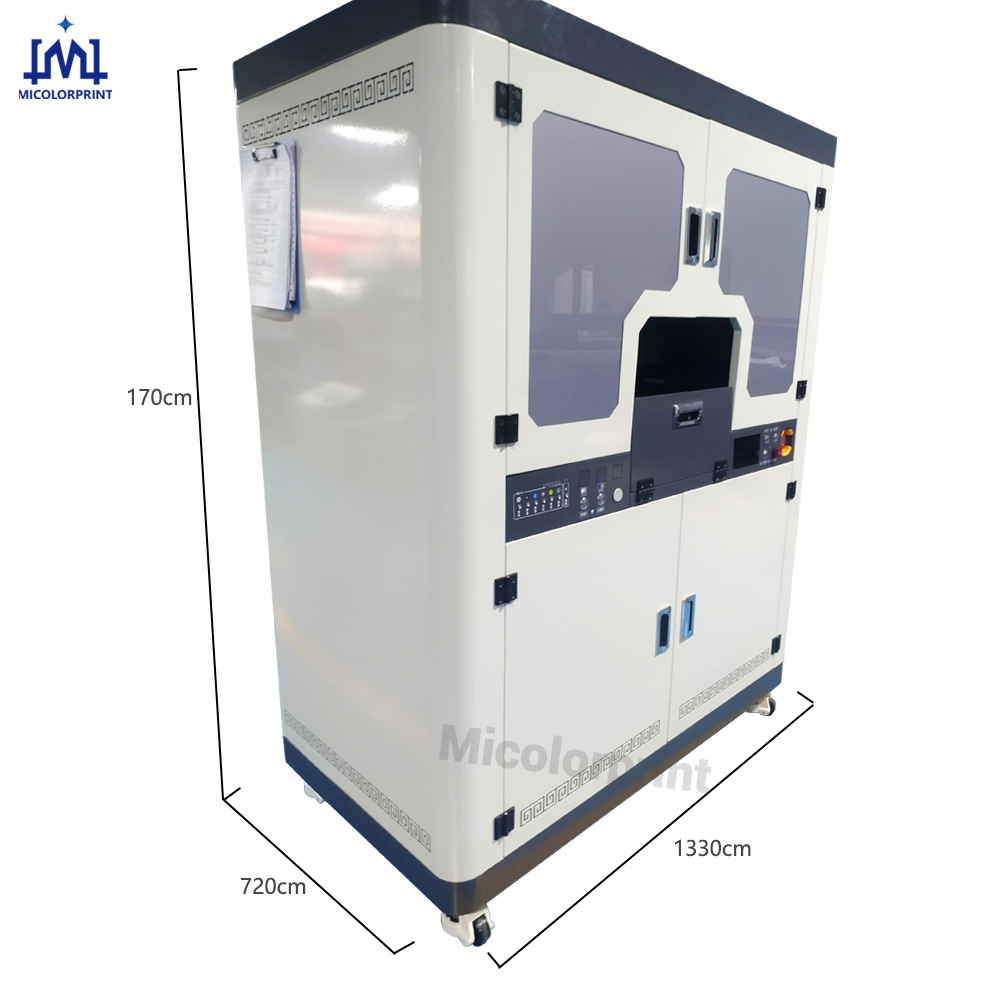

| Machine Size | 750 × 1330 × 1700 mm | Weight | 330 kg |

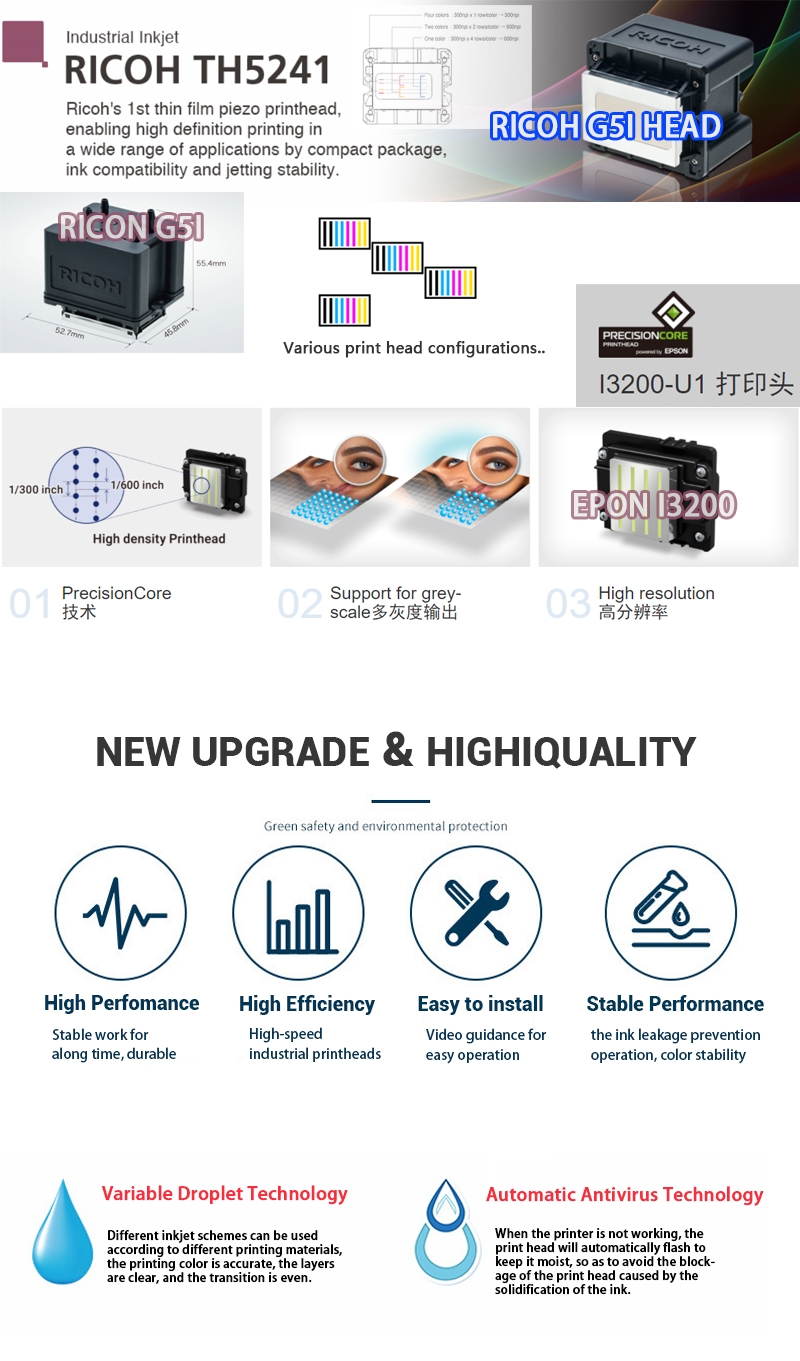

 | 1. Head and UV lamp Adopt high-precision industrial Ricohprint head. Using an electronic thermostat, the printing process will display the temperature of the uv lamp in real time and adjust the temperature. Guarantee the printing effect is stable. |
| 2. Uv Mainboard It can control the inkjet system, image algorithms, and color management. It is a digitally printed electronic circuit control hub. It can print, control, and adjust inkjet volume, nozzles, and other |  |
 | 3. Ink Alert system The printer will monitor the amount of ink used in real time, and the indicator light will turn on red when the ink is low. The button can open and adjust the negative ink pressure. |

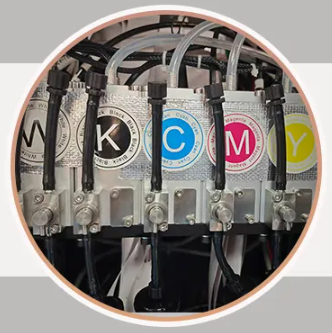

| 4. Cartridge Metal secondary cartridge ink from the primary. The ink cartridge is drawn to the secondary ink cartridge, and then to the head, a double negative pressure system, secondary ink cartridge preheating system. |  |
 | 5. Steel Structure Steel construction, stress annealed. Reasonable, high-precision, intensive, and stable polygonal support points, reasonable structure, strong stability, and no deformation for 10 years in normal use. |

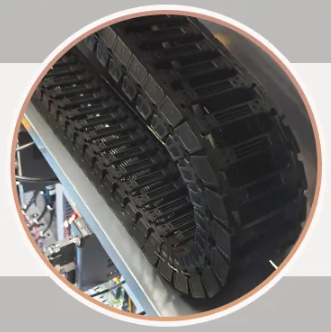

| 6. Energy chain POWET friction-resistant towline, suitable for high-speed movement. It can greatly reduce the wear of the wire harness, prolong the service life of the wire harness, and increase the stability of printing. |  |

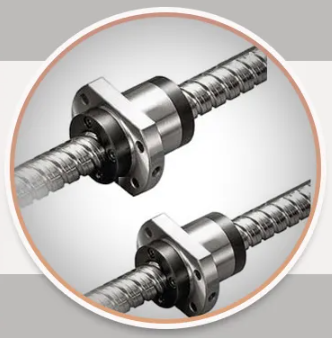

 | 7. Imported serew Silver-plated THK grinding screw, through the drive control device, improves the printing accuracy spend. Low noise and wear resistance during high-speed printing, ensuring accurate positioning. |

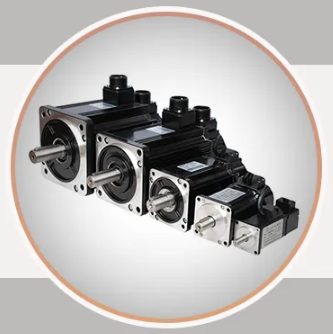

| 8. Servo Motor Provides superior control of X- and Y-axis motion to ensure accurate and durable machine rotation. The standard dynamic braking function automatically corrects the starting point of duplex printing. |  |
Start placing the bottles that need to be printed
✔ Fast throughput for higher productivity — ideal for commercial customization and batch printing.
✔ 360° seamless print coverage with crisp graphics that wrap around complex contours.
✔ One-pass white, color, and varnish printing — no repeated passes needed.
✔ Broad application range across promotional products, giftware, retail merchandise, and packaging industries.
Retail and promotional merchandise customization
Personalized drinkware and gift products
Brand labeling on bottles, mugs, and tumblers
Custom cosmetics and perfume bottle decoration
This printer is designed for cylindrical and conical objects, including tumblers, water bottles, insulated cups, mugs, perfume bottles, cosmetic containers, tea cans, and similar round products.
Yes. The rotary system supports 360° seamless printing, allowing full-coverage designs without visible gaps or overlaps on round and tapered items.
Depending on the artwork and print mode, one full-wrap print can be completed in approximately 15–60 seconds per item, making it suitable for batch and commercial production.
The printer can print on a wide range of materials such as metal, stainless steel, plastic, glass, acrylic, aluminum, and coated surfaces. Adhesion may vary depending on surface treatment.
It supports CMYK + White ink, with optional varnish printing for glossy, matte, or textured surface effects.
Yes. UV ink cures instantly under UV light, producing prints that are scratch-resistant, waterproof, and fade-resistant, suitable for daily use and long-term branding.
Yes. The adjustable rotary fixture allows stable printing on tapered and conical objects, such as tumblers and perfume bottles.
The printer supports common formats such as AI, PDF, TIFF, PSD, JPEG, and PNG, and works with professional RIP software on Windows systems.
The machine supports AC 110V or 220V, 50/60Hz, making it compatible with electrical standards in most countries.
Yes. We provide remote installation guidance, operation training, and lifetime technical support. On-site installation and training are also available upon request.
