Introduction of Fuji Dimatix Head

Japan’s Fujifilm Fuji Dimatix (formerly Spectra in the United States) print head. The Spectra company first produced office printing thermal foaming print heads, and finally gave up due to the emergence of HP, and turned to research and development of industrial piezoelectric print heads, which were later acquired by Japan’s Fuji. The characteristics of its heads are that the ink droplets are small (high corresponding precision), the injection frequency is very high (fast speed), and the ink is not very “picky”. American Wit is the first brand to use Spectra nozzles, and it is also the most popular in the global market. A well-received inkjet printer, the problem with the Spectra is that the price of the printhead is too high. Although Wittur has sold hundreds of units in China, the inkjet printer products of several domestic manufacturers that use Spectra printheads have never become mainstream products, and they are mainly exported. It is a lightweight cartridge printhead with precision stainless steel packaging. All components can be moved quickly. It is suitable for printers with superior performance. There are four main models:

Spectra series: (applied by domestic and other manufacturers)

Skywalker HD 128/50 printing width 64.5mm nozzle diameter 45um ignition frequency 16KHZ

Galaxy JA 256/30AAA Print width 64.8mm Nozzle diameter 36um Ignition frequency is 20KHZ

Galaxy JA 256/50AAA Print width 64.8mm Nozzle diameter 42um Ignition frequency is 20KHZ

Galaxy JA 256/80AAA Print width 64.8mm Nozzle diameter 52um Ignition frequency is 20KHZ

Galaxy PH 256/30AAA Print width 64.8mm Nozzle diameter 36um Ignition frequency is 20KHZ

Galaxy PH 256/50AAA print width 64.8mm nozzle diameter 42um ignition frequency 20KHZ

Galaxy PH 256/80AAA Print width 64.8mm Nozzle diameter 52um Ignition frequency is 20KHZ

Nova PH 256/80AAA Printing width 71.1mm Nozzle diameter 52um Ignition frequency 20KHZ

Nova JA 256/80AAA Printing width 71.1mm Nozzle diameter 52um Ignition frequency 20KHZ

SE-128/30AA printing width 64.5mm nozzle diameter 35um ignition frequency 40KHZ

SM-128/50AA printing width 64.5mm nozzle diameter 50um ignition frequency 20KHZ

SL-128/80AA print width 64.5mm nozzle diameter 50um ignition frequency 30KHZ

Polaris Polaris PQ 512/15PL has a printing width of 64.77mm, an ink droplet size of 15PL, a maximum resolution of 1000DPI, and an ignition frequency of 45KHZ. It is a new print head launched in 2009, with all-around ink, two-color, and two-row.

Polaris PQ512/15PL ignition frequency up to 40KHZ

Polaris PQ512/35PL ignition frequency up to 30KHZ

Polaris PQ512/85PL ignition frequency up to 20KHZ

Inspira series: print width 64.8mm

Galaxy PH 256/30HM nozzle diameter is 42um and ignition frequency is 20KHZ

Galaxy PH 256/80HM nozzle diameter is 52um and ignition frequency is 12KHZ

Endura series: print width 64.5mm

SE DPN Nozzle Diameter: 35um Ignition Frequency: 40KHZ

SX3 128/35PL Nozzle diameter: 27um Ignition frequency: 10KHZ

SE3 128/35PL Nozzle diameter: 42um Ignition frequency: 15KHZ

Among them, 128 series printheads have many similarities with XAAR128+ printheads in terms of stability and performance, while Nova256 series printheads are basically used by the printer manufacturer Wittech before the successful development of domestic inkjet printers. From the point of view of the internal structure of the print head, in the part of the print head that directly contacts the ink, the XAAR print head is made of Teflon material, and the Spectra print head is of steel structure. The ink has a certain corrosion ability. Due to the steel structure of the Spectra nozzle, the corrosion resistance of the nozzle to the ink is greatly improved first; the ink is pressed out of the nozzle, and the strong pressure can easily deform the diameter of the nozzle. The steel structure of the Spectra nozzle is higher than that of the XAAR nozzle. The inner coating of the material is more pressure-resistant. Therefore, Spectra heads have a longer service life than XAAR heads, changing the statement that nozzles are consumables. When it comes to the printing speed, the Spectra head has several times higher ignition frequency than the XAAR head, which greatly improves the printing speed of the inkjet printer. In the industry, the Spectra nozzle is a relatively high-end head.

Performa series: print width 64.77mm

Sapphire QS-256/10PL (original Q-256/10PL) The ignition frequency can reach 50KHZ

Sapphire QS-256/30PL (original Q-256/30PL) The ignition frequency can reach 33KHZ

Sapphire QS-256/80PL ignition frequency can reach 20KHZ

ScanPaQ 2.5 head(Q glass) 1024 nozzles, print width 64.9mm

Spectra SG1024SC 12-40PL, SG1024MC 20-65PL, Spectra’s new single-shot print heads for high-speed digital printing and ceramics, each head has 1024 nozzles, 128 nozzles per row, a total of eight rows, ink droplet size 20-30PL. The SG1024LC 70-180PL is similar in market and functionality to Konica’s KM1024i LHE.

SG1024MA, SG1024MA-2C, SG1024MC-2C, SG1024SA-2c, SG1024SA

M-class series: (currently no domestic manufacturers apply)

M-300/10PL JA 304 nozzles print width 42.7mm

M-class quad 720dpi

M-class hex PH 6 nozzles print width 42.7mm

D-class series: 128 nozzles

D-128/1 DPN nozzle diameter 9um ignition frequency 15KHZ

D-128/10 DPN nozzle diameter 21um ignition frequency 20KHZ

Emerald QE-256/30 AAA print width 67.44mm, ink drop size is 30, 50, 80PL, ignition frequency is 33, 20, 20KHZ, respectively

Samba nozzle: 2048 nozzles, 43mm printing width, 3PL, 100khz ignition frequency, samba nozzle finally swept in. 1200dpi resolution, unique nozzle fixing slot, can spell unlimited width.

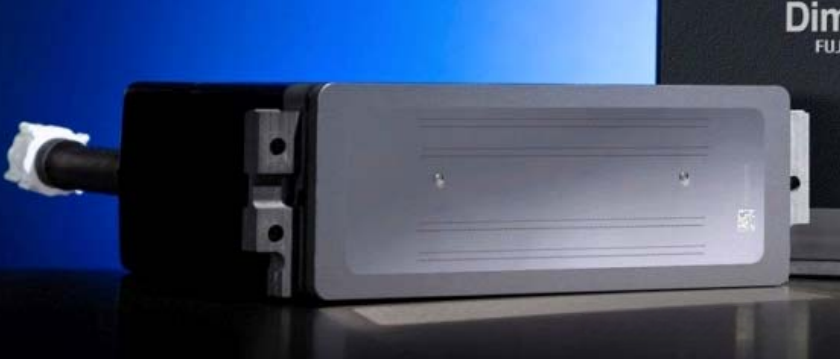

Dimatix StarFire SG-1024 Printhead Technical Analysis

1. Core Parameters and Performance

Nozzle Configuration:

• 1024 channels
• 8-row arrangement
• 400 dpi resolution
• Suitable for high-precision industrial printing

Droplet Control:

• Droplet size: approximately 9–14 pL
• Supports high-concentration ceramic inks (viscosity 8–20 cP)

Technical Features:

• RediJet Internal Recirculation Technology:
  Enables ink circulation at the nozzle plate level, reducing sedimentation and air bubble interference, thereby extending printhead lifespan
• Replaceable Metal Nozzle Plate:
  Modular design reduces maintenance costs and allows for quick replacement
• Special Coating:
  Non-wetting surface coating enhances chemical corrosion resistance, making it suitable for demanding fluids such as ceramic inks

2. Technical Comparison and Market Positioning

Advantages:
The SG1024’s high channel count combined with RediJet technology makes it highly effective in industrial applications such as ceramic printing and metal sintering.

3. Application Scenarios

Ceramic Printing:

• Compatible with high-viscosity ceramic inks
• Suitable for industrial applications such as tiles and decorative products

Metal Sintering:

• Corrosion-resistant design
• Suitable for sand casting and metal 3D printing

4. Maintenance Recommendations

Nozzle Cleaning:

• Regularly use specialized cleaning solutions (e.g., Dimatix-recommended formulations) to prevent clogging from ceramic inks

Temperature Control:

• Avoid high-temperature environments that may cause ink evaporation or aging of electronic components
